Description

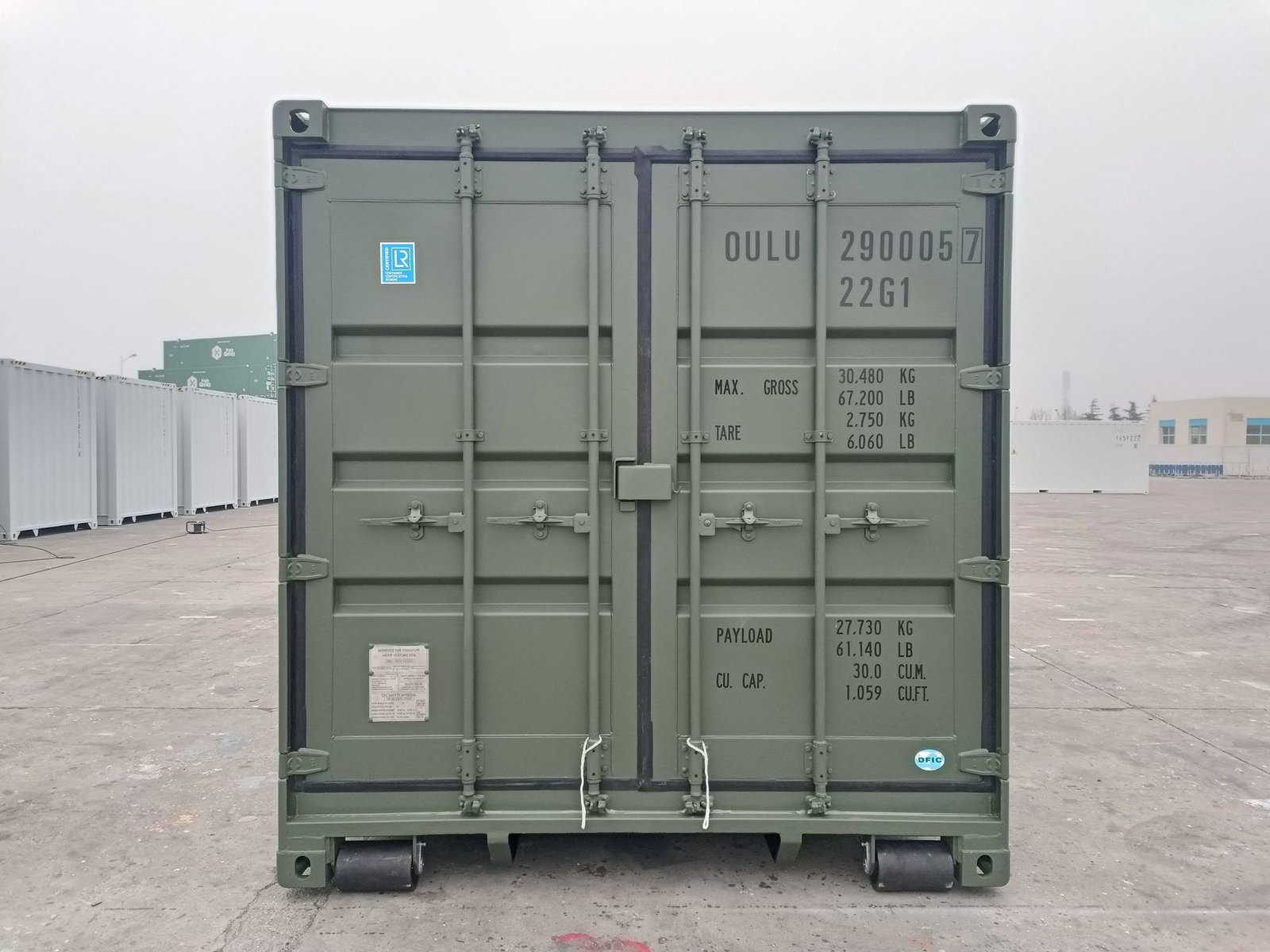

The NATO shipping container has double doors on one end, and floor options are Bamboo, Plywood, and Steel. Typical additions are closable equipment boxes and cutouts. All hinges have grease nubs as standard. We keep standard stock in Europe and, USA, and bigger orders and deliveries outside the EU will be done directly from our factory partner in China.
Standards
Container Frame:
ISO: 668, 830, 1161, 1496-1, 3874, 6346. CSC, CCC
Container Floor:
Bamboo/Plywood/Steel
Container Paint:
All RAL codes, categories 1-5 (ISO12944)
Container lashing rings:
Rated at 1500KG P/PCS (20 PCS)
Factory:
ISO 9001 (QMS), 9606-1&2 (welding)
General Dimensions
Outer Dimensions:
Length 6058 mm
Width 2438 mm
Height 2591 mm
Inner dimensions:
Length 5685 mm
Width 2352 mm
Height 2245 mm
Door opening Height:
2141 mm
Door opening Width:
2340 mm
Cubic capacity:
30 m3
Weight Data
Maximum gross weight:
16000 KGS
Tare weight:
2750 KGS
Payload (cargo weight):
13250 KGS
Stacking capacity/post:
97200 KGS
Racking test load:
150 KN
Floor test load:
7260 KGS
